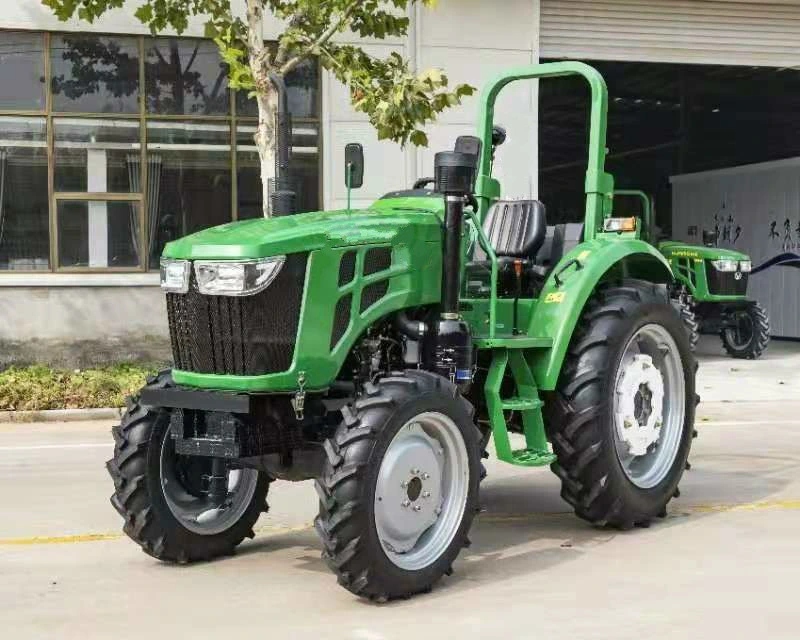

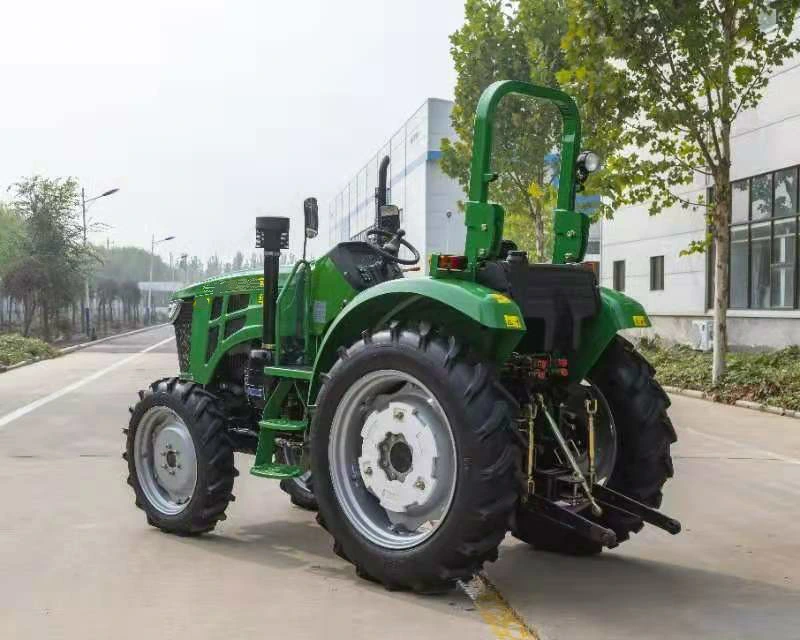

Chinese Small Farm Tractor 4x4 Mini Tractor Walking Tractor
This model tractor can match all kinds of implements, such as front end looder with standard buckets,backhoe, forks, tralier, mower, hedge cutter, snow blower, rotary tiller, disc plough, disc harrow, wood chipper, spreader, post hole digger, transport box and so on, we can also provide other implements according to your requirments
Advanced Technology, reasonable specification
1,The gearbox adopts TE8+8 gearbox side gear, with reasonable speed matching and high working efficiency, which can meet various working requirements.
2,The reinforced rear axle and reinforced semi-axle bushing pipe are adopted to improve the intensity of farmland operation;
High Efficiency, flexible operation
1,Strong pressure lifter, independent oil, can maintain the cleanliness of hydraulic oil, avoid stuck valve, extend the service life of hydraulic components,Simple structure, convenient disassembly and installation, reliable performance;
2,Power output 540/720 RPM/min, strong rise and fall, strengthened suspension;
3,Two way rear hydraulic output, to meet the needs of large-scale complex machinery and tools, a variety of farmland and transport operations;
4,Large capacity oil tank, continuous operation for a long time, to avoid repeated refueling midway, affecting the operation efficiency;
Comfortable Operation, ergonomic
1, Superior performance and advanced structure of the whole machine, 2020 hanging streamlined 3B machine hood;
2,Hydraulic booster steering, front and rear counterweight, anti-overturn frame, luxurious warm air shock absorption four-column original cab or flat floor, Side gear, Flat tire 6.50-16/9.5-24 (different types of tires can be changed according to demand).
Main technical parameters



This model tractor can match all kinds of implements, such as front end looder with standard buckets,backhoe, forks, tralier, mower, hedge cutter, snow blower, rotary tiller, disc plough, disc harrow, wood chipper, spreader, post hole digger, transport box and so on, we can also provide other implements according to your requirments
Advanced Technology, reasonable specification
1,The gearbox adopts TE8+8 gearbox side gear, with reasonable speed matching and high working efficiency, which can meet various working requirements.
2,The reinforced rear axle and reinforced semi-axle bushing pipe are adopted to improve the intensity of farmland operation;
High Efficiency, flexible operation
1,Strong pressure lifter, independent oil, can maintain the cleanliness of hydraulic oil, avoid stuck valve, extend the service life of hydraulic components,Simple structure, convenient disassembly and installation, reliable performance;
2,Power output 540/720 RPM/min, strong rise and fall, strengthened suspension;
3,Two way rear hydraulic output, to meet the needs of large-scale complex machinery and tools, a variety of farmland and transport operations;
4,Large capacity oil tank, continuous operation for a long time, to avoid repeated refueling midway, affecting the operation efficiency;
Comfortable Operation, ergonomic
1, Superior performance and advanced structure of the whole machine, 2020 hanging streamlined 3B machine hood;
2,Hydraulic booster steering, front and rear counterweight, anti-overturn frame, luxurious warm air shock absorption four-column original cab or flat floor, Side gear, Flat tire 6.50-16/9.5-24 (different types of tires can be changed according to demand).
Main technical parameters
Model | HRX504-N | HRX604-N | HRX704-N |
Type | 4×4 | ||
(mm)Boundary Dimension(L*W*H) | 3560×1735×2470 | ||
(kw/rpm) | 52/2400 | ||
(KN)Maximum traction force | ≥17 | ||
(KN)Maximum lifting force | ≥12.5 | ||
Transmission form | 8+2 or 8+8 | 8+2 or 8+8 | 8+2 or 8+8 |
(r/min)PTO Revolving Speed | 540/720 | ||
Multiple Spline of PTO | 8Tooth rectangle | ||
Hydraulic output | 2 groups | ||
Cab form | Drive room | ||
Tine (front/Rear) | 8.3-20/124-28 | ||
(mm)Front wheel track | 1200,300,400 | ||
(mm)Rear wheel track | 1220 1280 1350 1480 | ||
(Km/h)Speed range | 2.59~35.9 |
